Class SubscribedHomElements

constructor

• new SubscribedHomElements(uiTreeScope, backendClient, hostDescriptor, elementDescriptor, subscribeHomElementsResult): SubscribedHomElements

• Initializes a new instance of the HomElementsComponent class.

  Parameters

  • uiTreeScope: UITreeScope

    The UI tree scope.
  • backendClient: BackendClient

    The backend client for communication.
  • hostDescriptor: DescriptorDTO
  • elementDescriptor: DescriptorDTO

    The descriptor for UI elements.
  • subscribeHomElementsResult: SubscribeElementsResult

    The result of subscribing to HomElements.

  Returns SubscribedHomElements

elementDescriptor

hostDescriptor

Readonly subscriptionId

Static Readonly ALLPROPERTYID

elementsCount

• get elementsCount(): number

• Gets the count of elements in the collection.

  Returns number

  The count of elements.

getHomElements

• getHomElements(): HomElement[]

• Gets all HomElements in the collection.

  Returns HomElement[]

  An array of HomElement instances.

item

• item(index): HomElement

• Gets the HomElement at the specified index.

  Parameters

  • index: number

    The index of the HomElement to retrieve.

  Returns HomElement

  The HomElement at the specified index.

offBoundingBoxChanged

• offBoundingBoxChanged(): Promise<void>

• Unsubscribes from bounding box change events.

  Returns Promise<void>

offElementIsSelectedChanged

• offElementIsSelectedChanged(): Promise<void>

• Unsubscribes from element selection events.

  Returns Promise<void>

offElementToggleStateChanged

• offElementToggleStateChanged(): Promise<void>

• Unsubscribes from element toggle state change events.

  Returns Promise<void>

offNameChanged

• offNameChanged(): Promise<void>

• Unsubscribes from name change events.

  Returns Promise<void>

offTextChanged

• offTextChanged(): Promise<void>

• Unsubscribes from text change events.

  Returns Promise<void>

offTextSelectionChanged

• offTextSelectionChanged(): Promise<void>

• Unsubscribes from text selection change events.

  Returns Promise<void>

offUIChanged

• offUIChanged(): Promise<void>

• Unsubscribes from UI change events.

  Returns Promise<void>

onBoundingBoxChanged

• onBoundingBoxChanged(callback): Promise<void>

• Subscribes to changes in the HomElementsComponent's bounding box changes and executes the provided callback.

  Parameters

  • callback: ((elements) => void)

    The callback function to invoke on bounding box changes. The callback receives a object with the updated array of HomElement.

    • • (elements): void

      • Parameters

        • elements: HomElement[]

        Returns void

  Returns Promise<void>

  Example

  // triggered when the boundingBox of any element in the list is changed. (not including element's children changes)
  // all elements will be returned, including unchanged elements.
  // After the event is triggered, elements will be overwritten with the new value.
  await homElementsComponent.onBoundingBoxChanged((elements) => {
     console.log(elements)
  })
  Copy

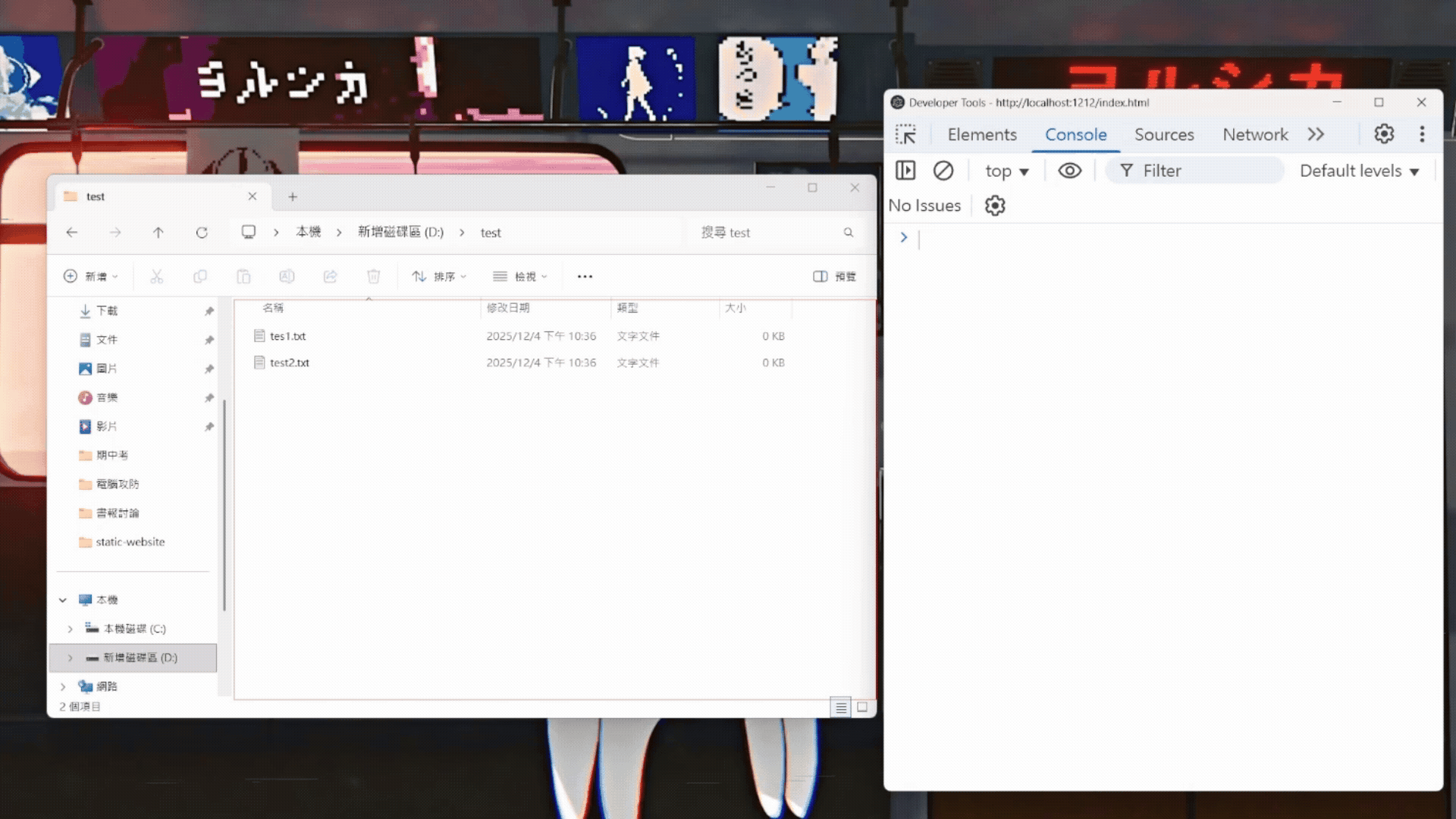

  The following animation demonstrates how onBoundingBoxChanged is triggered whenever the bounding box of any element is changed.



onElementIsSelectedChanged

• onElementIsSelectedChanged(callback): Promise<void>

• Subscribes to element selection events and executes the provided callback.

  Parameters

  • callback: ((elements) => void)

    The callback function to invoke on element selection changes. The callback receives the updated array of HomElement.

    • • (elements): void

      • Parameters

        • elements: HomElement[]

        Returns void

  Returns Promise<void>

  Example

  // triggered when any element in the list is selected or deselected.
  // The callback receives the updated HomElement array with isSelected property changes.
  // Only the isSelected property of matching elements will be updated, other elements remain unchanged.
  await homElementsComponent.onElementIsSelectedChanged((elements) => {
     console.log(elements)
  })
  Copy

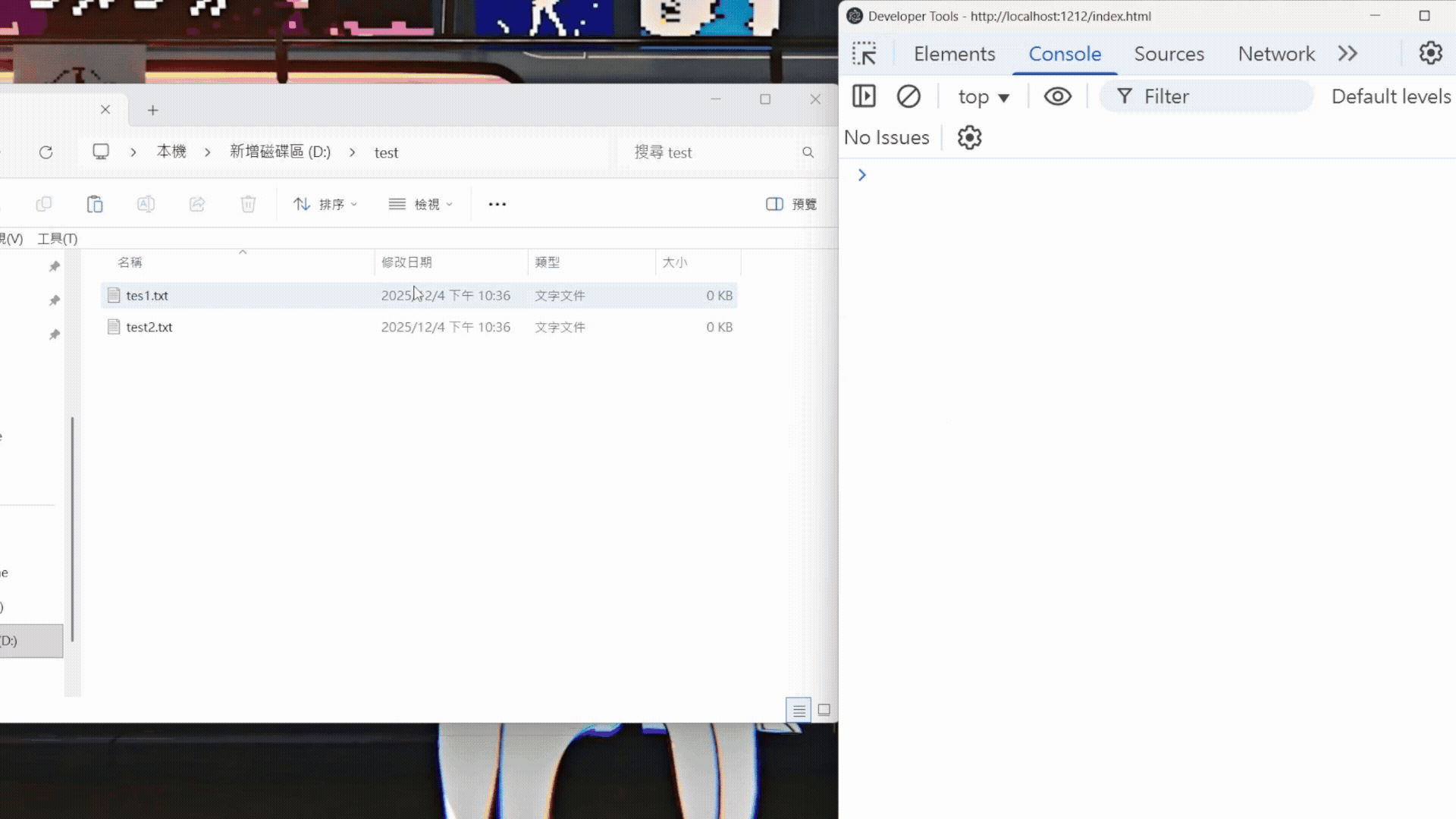

  The following animation demonstrates how onElementIsSelectedChanged is triggered whenever any element in the list is selected or deselected.



onElementToggleStateChanged

• onElementToggleStateChanged(callback): Promise<void>

• Subscribes to element toggle state change events and executes the provided callback.

  Parameters

  • callback: ((elements) => void)

    The callback function to invoke on element toggle state changes. The callback receives the updated array of HomElement.

    • • (elements): void

      • Parameters

        • elements: HomElement[]

        Returns void

  Returns Promise<void>

  Example

  // triggered when any element's toggle state (checked/unchecked, expanded/collapsed, etc.) changes.
  // The callback receives the updated HomElement array with toggleState property changes.
  // Only the toggleState property of matching elements will be updated, other elements remain unchanged.
  await homElementsComponent.onElementToggleStateChanged((elements) => {
     console.log(elements)
  })
  Copy

onNameChanged

• onNameChanged(callback): Promise<void>

• Subscribes to changes in the HomElementsComponent's name changes and executes the provided callback.

  Parameters

  • callback: ((elements) => void)

    function invoke on name changes. The callback receives a object with the updated array of HomElement.

    • • (elements): void

      • Parameters

        • elements: HomElement[]

        Returns void

  Returns Promise<void>

  Example

  // triggered when the name of any element in the list is changed. (not including element's children changes)
  // all elements will be returned, including unchanged elements.
  // After the event is triggered, elements will be overwritten with the new value.
  await homElementsComponent.onNameChanged((elements) => {
     console.log(elements)
  })
  Copy

onTextChanged

• onTextChanged(callback): Promise<void>

• Subscribes to changes in the HomElementsComponent's text content and executes the provided callback.

  Parameters

  • callback: ((text) => void)

    The callback function to invoke on text changes. The callback receives the new text content as a string.

    • • (text): void

      • Parameters

        • text: string

        Returns void

  Returns Promise<void>

  Example

  // triggered when the text content of any element in the list is changed.
  // The callback receives the new text content as a string.
  await homElementsComponent.onTextChanged((text) => {
     console.log('Text changed to:', text)
  })
  Copy

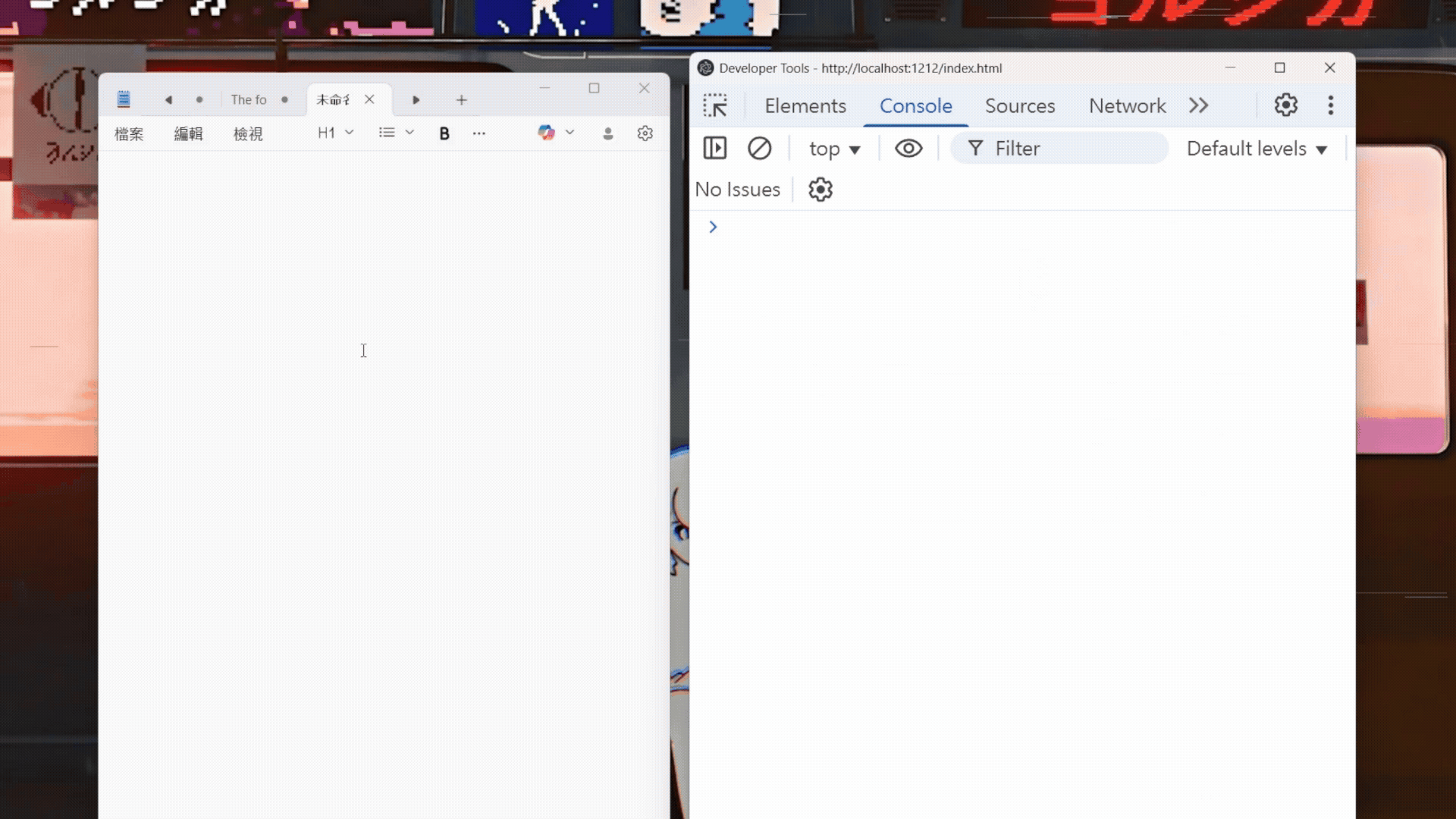

  The following animation demonstrates how onTextChanged is triggered whenever the text content of any element in the list is changed



onTextSelectionChanged

• onTextSelectionChanged(callback): Promise<void>

• Subscribes to changes in the HomElementsComponent's text selection content and executes the provided callback.

  Parameters

  • callback: ((text) => void)

    The callback function to invoke on text selection changes. The callback receives the new text content as a string.

    • • (text): void

      • Parameters

        • text: string

        Returns void

  Returns Promise<void>

  Example

  // triggered when the text selection content of any element in the visible document is changed.
  // The callback receives the new text content as a string.
  await homElementsComponent.onTextSelectionChanged((text) => {
     console.log('Text changed to:', text)
  })
  Copy

onUIChanged

• onUIChanged(callback): Promise<void>

• Subscribes to changes in the Elements changes and invokes the provided callback.

  Parameters

  • callback: ((previous, targets) => void)
    • • (previous, targets): void

      • Parameters

        • previous: HomElement[]
        • targets: HomElement[]

        Returns void

  Returns Promise<void>

  Example

  // event will be triggered at the following times:
  // - when the children of elements contained in the list change.
  // - when the elements matching the descriptor increase or decrease.
  //
  // After the event is triggered, elements will be overwritten with the new value.
  await homElementsComponent.onUIChange((prevs, targets) => {
     console.log(prevs)
     console.log(targets)
  })
  @param {function(HomElement[], HomElement[]): void} callback - The callback function to invoke on UI changes.
  Copy
